Lucerne WebSDR - Switzerland - by HB3XDC

[hb3xdc]

Lucerne WebSDR - Switzerland - by HB3XDC

Antenna:

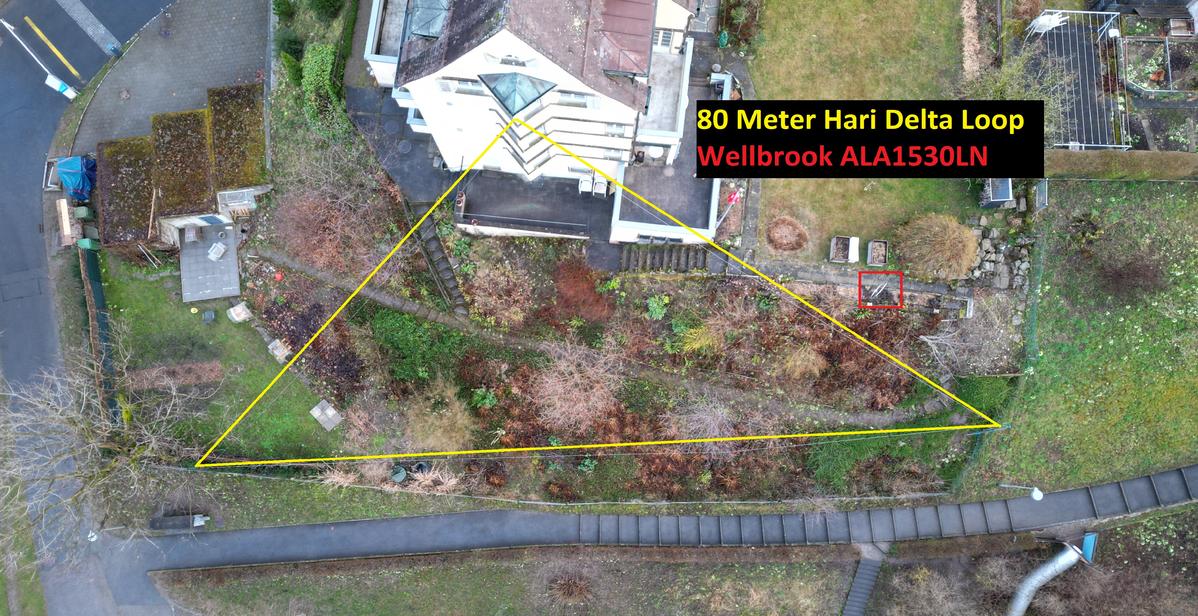

Hari Delta Loop / 80m and Diamond X50-NA at urban noise level



RX:
RX888mk 2 and RTL-SDR v3 stick on 70cm - Other hardware in User for old WebSDR


PC:
HP EliteDesk 800 G2 PC
Intel® Core™ i5-6600T CPU @ 2.70GHz × 4
Ubuntu 22.04 LTS

VHF
http://websdr.hb3xdc.ch:8073/

HF
http://websdr.hb3xdc.ch:8074/

Classic WebSDR
http://websdr.hb3xdc.ch:8901/

73 de HB3XDC

[Bas ON5HB]

Nice setup....me like!

Mine it by far less....will post pictures in a few days.

[hb3xdc]

Thinking about adding another RTL-SDR for 2m Band.
Is there any interest in 2m Band, or maybe any other frequency range that someone who reads this would like to see on a PhantomSDR+?

[hb3xdc]

Nice setup....me like!

Mine it by far less....will post pictures in a few days.

Thank you Bas

[Bas ON5HB]

Why not use the SDRplay for that?

As it's 16bit and can do 4MHz with PhantomSDR+...unlike the 8bit RTl-connector.
AND on top it's far better then an RTL-stick.

[HB3XVQ]

Hello Guys..

[hb3xdc]

Good Idea, will connect a RSP1a to the VHF Antenna, hope to get it work stable with rx_sdr, always was bit tricky

[Bas ON5HB]

Seems you never received the activation-email, so I activated you by hand.

You may want to use google-mail or so, as your provider blocks a lot.

[Bas ON5HB]

Good Idea, will connect a RSP1a to the VHF Antenna, hope to get it work stable with rx_sdr, always was bit tricky

Well it's not bad as long as you stay below 6MHz, but I would not use Soapy with the Api 3.xx, as it crashes.

Find the API2.xx plugin, use that, far more stable.

[hb3xdc]

Good Idea, will connect a RSP1a to the VHF Antenna, hope to get it work stable with rx_sdr, always was bit tricky

Well it's not bad as long as you stay below 6MHz, but I would not use Soapy with the Api 3.xx, as it crashes.

Find the API2.xx plugin, use that, far more stable.

Will try to use it for full 70cm band at 5MHz BW, somehow last time I installed it for Jean at Zug WebSDR we got only API3.xx to run it, I'll try my luck again with API2.xx

[Bas ON5HB]

I have tried API 3.xx and it simply crashed for no reason, like it did my times before when I used it for my RSP_TCP driver.
Never got it stable, and yet again it proved to be a bad API.

Stupid thing is, I informed John (big boss of SDRplay) about the problems of the 3.xx API but he didn't want to hear about them.

So sad, as this beatifull product is hindered by poor API-deamon.

You can allways use the RX888 at 4MSPS

[hb3xdc]

Did some quick n dirty mods in the app.svelte for my servers:

http://sardinia-sdr.ddns.net:8073/

http://websdr.hb3xdc.ch:8074/

my Mods to frontend can be found here:
https://www.swisstransfer.com/d/ab8b0c08-f52d-4157-9fdd-a45157754f90

[Emmanuel SV1BTL]

Did some quick n dirty mods in the app.svelte for my servers:

http://sardinia-sdr.ddns.net:8073/

http://websdr.hb3xdc.ch:8074/

my Mods to frontend can be found here:
https://www.swisstransfer.com/d/ab8b0c08-f52d-4157-9fdd-a45157754f90

Thank you, all done with some difficulties, but DONE!...
